유니티 클라이언트와 c++ 서버 플랫 버퍼로 통신하기 성공~

제페 2017. 12. 4. 22:10

c++ 서버는 boost/asio 기반으로 만들었다.

#include <iostream>
#include <iterator>
#include <nta/tcp.hpp>
#include "packets.h"

class flatbuffers_filter : public nta::receive_filter // 아직 작성되지 않음
{
public:
  virtual result feed(const std::byte* data, std::size_t size) {
    return drain(size);
  }
};

class session : public nta::tcp::session
{
public:

  session(nta::tcp::session_params params) :
    nta::tcp::session(std::move(params))
  {
  }

  virtual void on_opened() override
  {
    std::cout << "opened" << std::endl;
    flatbuffers::FlatBufferBuilder builder;
    builder.Finish(MyGames::packet::CreateVector2(builder, 10.0f, 10.0f));
    auto data = builder.GetBufferPointer();
    auto size = builder.GetSize();
    std::vector<char> buffer(sizeof(packet::header) + size);
    packet::header header{ 0, size };
    std::memcpy(buffer.data(), &header, sizeof(header));
    this->send(buffer.data(), buffer.size());
  }

  virtual void on_closed() override
  {
  }

  virtual void on_received(const std::error_code& err, const nta::packet& packet) override
  {
    if (err)
      this->close();
  }

  virtual void on_sent(const std::error_code &) override
  {
  }

};

int main(){
  nta::tcp::server_builder builder;
  builder
    .endpoint("localhost:16333")
    .max_sessions(1)
    .session <session>();
  std::shared_ptr<nta::tcp::server> server = builder.build();
  server->run();
  return 0;
}

유니티 클라이언트는 c#을 이용해서 만들었다.

using System;
using System.Collections.Generic;
using System.Net;
using System.Net.Sockets;
using System.IO;
using UnityEngine;

namespace Assets
{
  public class ReadBuffer
  {
    byte[] buffer;
    public MemoryStream stream;
    public int readPosition = 0;

    public ReadBuffer(int bufferSize = 1024*2)
    {
      buffer = new byte[bufferSize];
      stream = new MemoryStream();
    }

    public byte[] Prepare()
    {
      return buffer;
    }

    public byte[] Prepare(int size)
    {
      if (buffer.Length < size)
      {
        buffer = new byte[size];
      }
      return buffer;
    }

    public void Commit(int size)
    {
      if ((stream.Capacity - stream.Position) < size) // 이거 지우면 해결되는데 뭐냐
      {
        int readableSize = ReadableSize;
        Buffer.BlockCopy(stream.GetBuffer(), readPosition, stream.GetBuffer(), 0, readableSize);
        stream.SetLength(readableSize);
        stream.Position = readableSize;
        readPosition = 0;
      }
      stream.Write(buffer, 0, size);
    }

    public void Consume(int size)
    {
      if ((stream.Length - readPosition) < size)
        throw new ArgumentOutOfRangeException("consume size too big");
      readPosition += size;
    }

    public byte[] Data()
    {
      int readableSize = ReadableSize;
      byte[] ret = new byte[readableSize];
      Array.Copy(stream.GetBuffer(), readPosition, ret, 0, readableSize);
      return ret;
    }

    public int ReadableSize
    {
      get
      {
        return (int)(stream.Length - readPosition);
      }
    }
  }

  public class RemoteServer : IServer
  {
    TcpClient tcpClient;
    IPEndPoint endpoint;
    NetworkStream networkStream;
    Queue<KeyValuePair<int, byte[]>> packetQueue = new Queue<KeyValuePair<int, byte[]>>();
    Action<int, byte[]> packetHandler;
    static int packetHeaderSize = 8;

    class ReadContext
    {
      public ReadBuffer readBuffer = new ReadBuffer();
      public Queue<KeyValuePair<int, byte[]>> packetQueue;
      public List<KeyValuePair<int, byte[]>> enqueueBuffer = new List<KeyValuePair<int, byte[]>>();
    }

    public RemoteServer(IPEndPoint endpoint, Action<int, byte[]> packetHandler)
    {
      tcpClient = new TcpClient();
      this.endpoint = endpoint;
      this.packetHandler = packetHandler;
    }

    public void Start()
    {
      tcpClient.BeginConnect(endpoint.Address, endpoint.Port, (IAsyncResult ar)=> {
        networkStream = tcpClient.GetStream();
        DoReceive(new ReadContext { packetQueue = packetQueue });
      }, this);
    }

    public void Update()
    {
      List<KeyValuePair<int, byte[]>> packets = new List<KeyValuePair<int, byte[]>>();
      lock (packetQueue)
      {
        while(packetQueue.Count != 0)
        {
          packets.Add(packetQueue.Dequeue());
        }
      }

      foreach(var packet in packets)
      {
        packetHandler(packet.Key, packet.Value);
      }
    }

    public void Send(int type, byte[] data)
    {
      byte[] buffer = new byte[data.Length + 8];
      BitConverter.GetBytes(type).CopyTo(buffer, 0);
      BitConverter.GetBytes(data.Length).CopyTo(buffer, 4);
      data.CopyTo(buffer, 8);

      networkStream.BeginWrite(buffer, 0, buffer.Length, (IAsyncResult ar)=> {

      }, this);
    }

    void DoReceive(ReadContext readContext)
    {
      if (!networkStream.CanRead)
      {
        Debug.Log("NetworkStream can't reading");
        return;
      }

      byte[] buffer = readContext.readBuffer.Prepare();

      networkStream.BeginRead(buffer, 0, buffer.Length, (IAsyncResult ar) => {

        int bytesTransferred = networkStream.EndRead(ar);

        ReadContext context = (ReadContext)ar.AsyncState;

        context.readBuffer.Commit(bytesTransferred);

        while (packetHeaderSize <= readContext.readBuffer.ReadableSize)
        {
          byte[] data = readContext.readBuffer.Data();

          int type = BitConverter.ToInt32(data, 0);
          int size = BitConverter.ToInt32(data, sizeof(int));

          if (data.Length < size)
          {
            break;
          }

          byte[] packetBody = new byte[size];
          Array.Copy(data, packetHeaderSize, packetBody, 0, packetBody.Length);

          context.enqueueBuffer.Add(new KeyValuePair<int, byte[]>(type, packetBody));

          readContext.readBuffer.Consume(packetHeaderSize + size);
        }

        lock (packetQueue)
        {
          foreach (var item in context.enqueueBuffer)
          {
            packetQueue.Enqueue(item);
          }
        }
        context.enqueueBuffer.Clear();

        DoReceive(context);

      }, readContext);
    }
  }
}

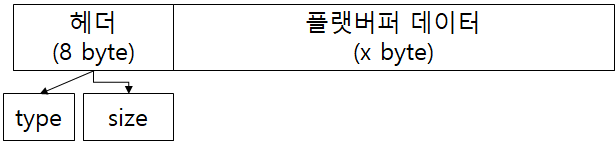

플랫 버퍼의 총 크기는 알 수 없으므로 패킷 헤더에 타입과 사이즈를 넣었다. 헤더의 사이즈엔 플랫버퍼의 크기가 기록된다.

받은 데이터가 헤더를 제외하고 헤더에 명시된 플랫버퍼 크기 이상을 받았다면 그만큼 잘라서 쓰면 된다.

type은 플랫버퍼를 바이너리를 역직렬화 할 때 어떤 변환을 거칠 것인지 판단을 할 기준이 있어야 하기 때문에 반드시 필요하다.

using System.Collections.Generic;
using UnityEngine;
using Assets;
using System.Net;
using FlatBuffers;

public class GameController : MonoBehaviour {

  RemoteServer server;
  HashSet<GameObject> objects = new HashSet<GameObject>();

  // Use this for initialization
  void Start ()
  {
    server = new RemoteServer(new IPEndPoint(IPAddress.Loopback, 16333), (int type, byte[] body)=>
    {
      switch(type)
      {
        case 0:
          {// 타입 0이면 Vector2로 변환하는 처리!
            var vec2 = MyGames.packet.Vector2.GetRootAsVector2(new ByteBuffer(body));
            Debug.Log(string.Format("{0} {1}", vec2.X, vec2.Y));
          }
          break;
      }

    });
    server.Start();
  }

  void Update ()
  {
    server.Update();
  }
}

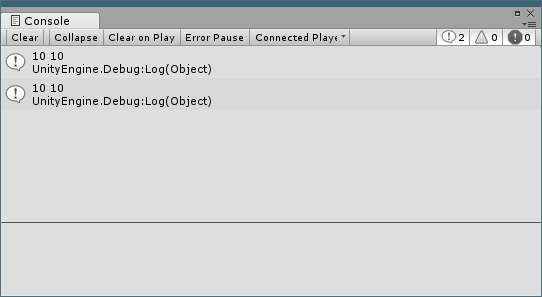

접속하면 c++ 서버에서 10, 10을 보내고 유니티 클라이언트에서 10, 10을 받았다. 많이 다듬어야겠지만 물꼬는 틀었다 ~_~
